Description

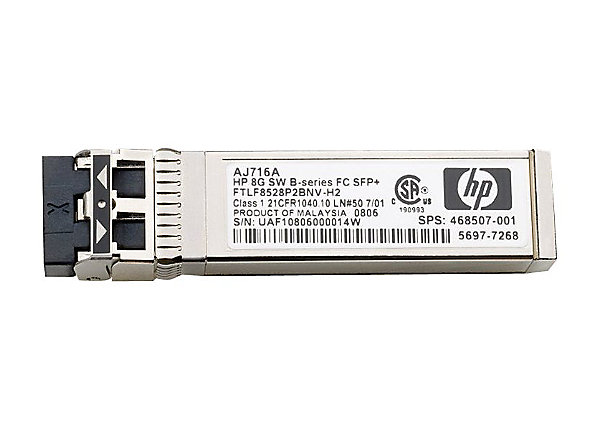

This HP AJ716B compatible transceiver provides maximum link distance of 300m over multimode OM3 fiber cable, it is designed for 8Gbps short wave Fibre channel connectivity application. It is programmed to ensure working with HP FC SAN switches, servers and blade chassis, which makes it be an ideal equivalent to high-cost original AJ716B 8Gb Shortwave B-series Fibre Channel SFP+ Transceiver.
• Functionally identical to HP AJ716B
• Up to 8.5 Gbps Bi-directional Data Links
• Metal enclosure, for lower EMI
• Build-in Digital Diagnostics Monitoring (DDM)
• Single 3.3V power supply
HPE 8Gb Short Wave B-Series SFP+ 1 Pack
Specifications
OEM Part Number
AJ716B
Optcore Part Number
OSP8G-8503DCR-HP
Form Factor
SFP+
Data Rate
8Gb/s
Wavelength
850 nm
Fiber Type
MMF
Max Distance
300 m
Optical Components
VCSEL/PIN
Transmitter Power
-6 ~ -1 dBm
Extinction ratio
> 3.5 dB
Receiver Sensitivity
< -10 dBm
Receiver Overload
> 0.5 dBm
Connector
Duplex LC
Digital Diagnostic Monitoring
Yes
Environment
Operating: 0°C to 70°C
Storage: -40°C to 85°C
Weight
0.03 kg
Application
High-speed storage area networks
− Switches and hubs
− Network interface cards
− Mass storage systems
− Host bus adapters
2G/4G/8G Fibre Channel
Compliance
IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
