Description
The Cisco C9500-16X-2Q-A Series is the first 100/40-Gbps switch purpose built for the enterprise campus. Modern applications are multinode, highly modular, and deployed over a combination of bare-metal, virtual, and cloud data center environments. Data center networks are required to be simple, programmable, extensible, scalable, and shareable to meet the Modern day demands of applications. The Catalyst 9500 fixed-core switches are high-density building blocks for a next-Generation, intent-based network. Offering a comprehensive selection of Line cards that provide 1-, 10-, 25-, 40-, 50-, and 100-Gigabit Ethernet interfaces through bandwidth of up to 172.8 Terabits. Unique fabric Modules and Fan Trays are used to plug in vertically in the rear of the chassis while supervisor, system controller, power supplies and Line cards are common parts.

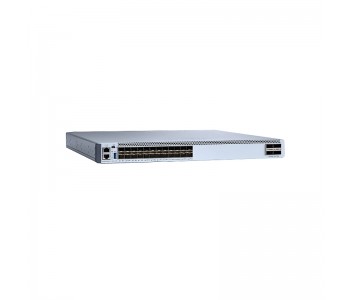

Cisco Catalyst 9500 16-Port 10G Switch, 2 x 40GE Network Module
Specifications
C9500-16X-2Q-A
Device Type
Switch – 16 ports – L3 – managed – stackable
Enclosure Type
Rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
Performance
Switching capacity (full duplex): up to 480 Gbps ¦ Forwarding rate: up to 360 Mpps
Capacity
Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 80000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 40000 ¦ Multicast scale: 16000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size
64K entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, TFTP, NETCONF, RESTCONF
Encryption Algorithm
256-bit AES
Features
DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), MACsec support, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, CoAP support, Switched Port Analyzer (SPAN)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Processor
1: 2.4 GHz
RAM
16 GB
Flash Memory
16 GB
Built-in Devices
RFID tag
Status Indicators
Status
