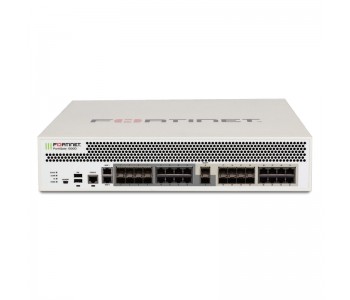

FG-1000D FortiGate 1000 Series

R0.00

FG-1000D

2x 10GE SFP+ Slots, 16x GE SFP Slots, 16x GE RJ45 Ports, 2x GE RJ45management Ports, SPU NP6 and CP8 Hardware Accelerated, 1x 256 GB SSD Onboard Storage, Dual AC Power Supplies

Please Quote for price

Available on backorder

Description

The FortiGate FG-1000D delivers high performance threat protection for mid-sized to large enterprises and service providers, with the flexibility to be deployed at the Internet or cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, industry-leading security efficacy and high throughput of the 1000D keeps your network connected and secure.

FG-1000D

2x 10GE SFP+ Slots, 16x GE SFP Slots, 16x GE RJ45 Ports, 2x GE RJ45management Ports, SPU NP6 and CP8 Hardware Accelerated, 1x 256 GB SSD Onboard Storage, Dual AC Power Supplies

Specifications

FG-1000D

Actual Weight
24.7

Connectivity
# Ports: 32

General Information
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 52 / 52 / 33 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP): 52 / 52 / 33 Gbps
Firewall Latency (64 byte, UDP): 3 ┬Ás
Firewall Throughput (Packet per Second): 49.5 Mpps
Concurrent Sessions (TCP): 11 Million
New Sessions/Second (TCP): 280,000
Firewall Policies: 100,000
IPsec VPN Throughput (512 byte): 25 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 20,000
Client-to-Gateway IPsec VPN Tunnels: 100,000
SSL-VPN Throughput: 3.6 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 10,000
SSL Inspection Throughput (IPS, HTTP): 4 Gbps
Application Control Throughput (HTTP 64K): 14 Gbps
CAPWAP Throughput (1444 byte, UDP): 11 Gbps
Virtual Domains (Default / Maximum): 10 / 250
Maximum Number of Switches Supported: 128
Maximum Number of FortiAPs (Total / Tunnel): 4,096 / 1,024
Maximum Number of FortiTokens: 5,000
Maximum Number of Registered Endpoints: 20,000
High Availability Configurations: Active-Active, Active-Passive, Clustering

Optimal Traffic Mix:
IPS Throughput: 9 Gbps

Enterprise Traffic Mix:
IPS Throughput: 6 Gbps
NGFW Throughput: 5 Gbps
Threat Protection Throughput: 4 Gbps

Memory Notes
Onboard storage: 256GB SSD

Ports/Connectors
(16) Hardware Accelerated GE RJ45
(16) Hardware Accelerated GE SFP
(2) Hardware Accelerated 10 GE SFP+
(2) GE RJ45 management/HA
(3) USB (1 Client, 2 Server)
(1) console

Power Notes
Dual, redundant, hot swappable AC power supplies
Supply: 100-240 VAC, 60-50 Hz
Power Consumption (Average / Maximum): 153 W / 220.8 W
Current (Maximum): 100V / 5A, 240V / 3A

Protocols
Networking Protocol: 10 Gigabit Ethernet, Gigabit Ethernet
Remote Management Protocol: CLI, SNMP
Switching Protocol: Ethernet
Transport Protocol: IPSec, L2TP, PPTP
