Description

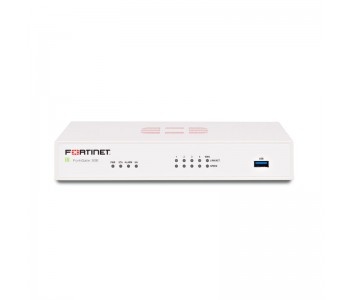

The FortiGate FG-30E series offers an excellent network security solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy to deploy solution. The FortiGate supports external 3G/4G modems that allow additional or redundant WAN connectivity for maximum reliability. The FortiGate can also operate as a wireless access point controller to further extend wireless capabilities.
5x GE RJ45 Ports (Including 1x WAN Port, 4x Switch Ports), Maximum Managed FortiAPs (Total / Tunnel) 2/2
Specifications
FG-30E
Device Type
Security appliance
Width
8.3 in
Depth
5.2 in
Height
1.6 in
Weight
31.71 oz
Flash Memory
16 GB
Form Factor
External
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Switching Protocol
Ethernet
Remote Management Protocol
HTTP
Performance
Firewall throughput: 950 Mbps | Firewall throughput: 180000 packets per second | SSL inspection throughput: 200 Mbps | Firewall latency (64-byte UDP): 130 µs | IPS throughput: 240 Mbps | IPS throughput (HTTP): 600 Mbps | VPN throughput (512-bit IPSec): 75 Mbps | VPN throughput (SSL): 35 Mbps
Capacity
Concurrent TCP sessions: 900000 | New TCP sessions per second: 15000 | Firewall policies: 5000 | Gateway to gateway IPSec VPN Tunnels: 20 | Client to gateway IPSec VPN tunnels: 250 | Concurrent SSL VPN users: 80 | Number of FortiToken devices: 20 | Number of FortiClient devices: 200 | Virtual domains: 5 | Number of FortiAP devices: 2
Features
Firewall protection, VPN support, manageable, antivirus analysis, Intrusion Prevention System (IPS), ASIC VPN, URL filtering
Interfaces
1 x 1000Base-T – RJ-45 (WAN) | 4 x 1000Base-T – RJ-45 | 1 x USB – Type A | 1 x console – RJ-45
Power Device
External power adapter
Voltage Required
AC 120/230 V (50 – 60 Hz)
Power Consumption Operational
13 Watt
