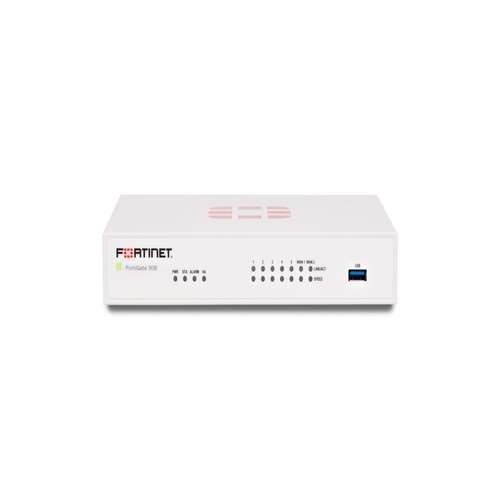

FG-50E FortiGate 50 Series



7x GE RJ45 Ports (Including 2x WAN Ports, 5x Switch Ports), Maximum Managed FortiAPs (Total / Tunnel) 10/5

Please Quote for price

Available on backorder


The FortiGate FG-50E series offers an excellent network security solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy to deploy solution.


7x GE RJ45 Ports (Including 2x WAN Ports, 5x Switch Ports), Maximum Managed FortiAPs (Total / Tunnel) 10/5



Actual Weight

# Ports: 7

Firewall, documentation

General Information
System Performance – Enterprise Traffic Mix:
IPS Throughput: 350 Mbps
NGFW Throughput: 220 Mbps
Threat Protection Throughput: 160 Mbps

System Performance:
Firewall Throughput: 2.5 Gbps
Firewall Latency (64 byte UDP packets): 180 µs
Firewall Throughput (Packets Per Second): 375 Kpps
Concurrent Sessions (TCP): 1.8 Million
New Sessions/Second (TCP): 21,000
Firewall Policies: 5,000
IPsec VPN Throughput (512 byte): 90 Mbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 250
SSL-VPN Throughput: 100 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 80
SSL Inspection Throughput (IPS, avg. HTTPS): 150 Mbps
SSL Inspection CPS (IPS, avg. HTTPS): 140
SSL Inspection Concurrent Session (IPS, avg. HTTPS): 75,000
Application Control Throughput (HTTP 64K): 450 Mbps
CAPWAP Throughput (HTTP 64K): 1.2 Gbps
Virtual Domains (Default / Maximum): 5 / 5
Maximum Number of Switches Supported: 8
Maximum Number of FortiAPs (Total / Tunnel Mode): 10 / 5
Maximum Number of FortiTokens: 100
Maximum Number of Registered FortiClients: 200
High Availability Configurations: Active/Active, Active/Passive, Clustering

(5) GE RJ-45 Switch
(2) GE RJ-45 WAN
(1) USB
(1) Console (RJ-45)

Power Notes
Power Required: 100–240V AC, 60–50 Hz (External DC Power Adapter)
Maximum Current: 100 V / 0.6 A, 240 V / 0.4 A
Power Consumption (Average / Maximum): 15 / 18 W

Networking Protocol: Gigabit Ethernet
Remote Management Protocol: HTTP
Switching Protocol: Ethernet
Transport Protocol: IPSec
