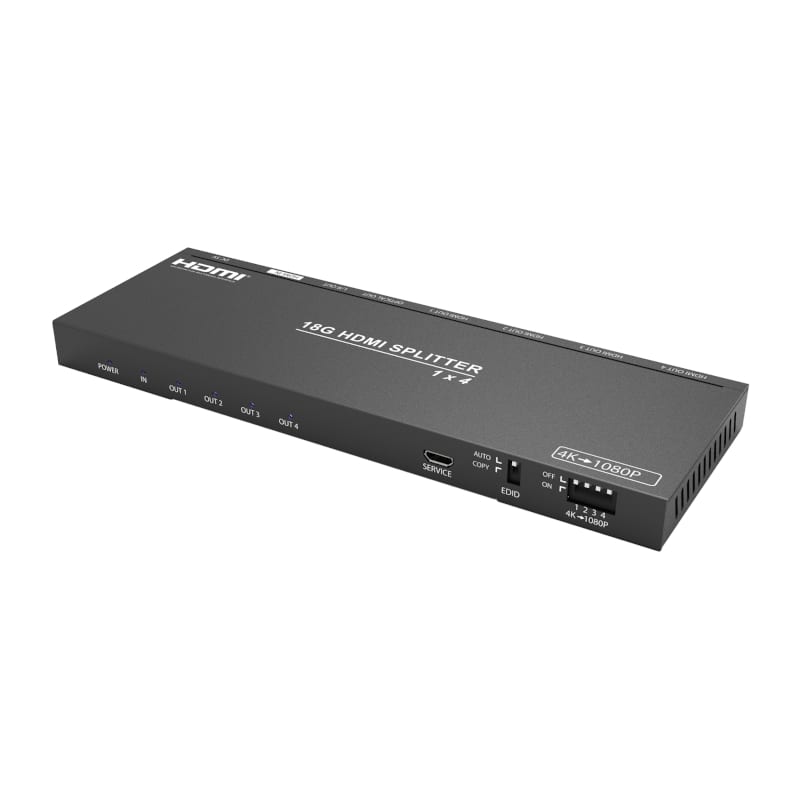

HDCVT 1×4 HDMI 2.0 Splitter with Scaler/Audio Extract EDID HDCP 2.2

R999.00

Simultaneously split 1 HMDI source to 4 HDMI output displays with the HDCVT 1-4 HDMI 2.0 Splitter with Scaler/Audio Extract. It features 4 HDMI output ports, support for resolutions up to 4K@60Hz, audio extract from HDMI, support for output bypass and a downscaler.

Description

The HDCVT 1-4 HDMI 2.0 Splitter with Scaler/Audio Extract can simultaneously one route HDMI source to four routes HDMI displays. It supports resolutions of up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. Output supports bypass and downscaler(4K->1080P) function as well as support for analog audio PCM 2.0 and various optical audio pass-through formats.

FEATURES:

  • HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
  • Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)
  • Supports digital and analog audio extract output from HDMI source.
  • Supports output bypass and 4K->1080P downscaler function via dial switch on panel.
  • EDID can be selected COPY and AUTO modes via dial switch on panel.
  • Supports analog audio PCM 2.0.
  • Supports various optical audio pass-through formats

SPECIFICATIONS:

  • Housing: Metal Enclosure
  • Colour: Black
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution: 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 4K60Hz 8-bit, 1080P 12-bit
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • L/R Audio Formats: PCM 2.0
  • Optical Audio Formats: LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
  • ESD Protection Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
  • Inputs: 1×HDMI Type A [19-pin female]
  • Outputs: 4×HDMI Type A [19-pin female], 1×L/R Audio out [3.5mm Stereo Mini-jack], 1×Optical out [S/PDIF]

WHAT’S IN THE BOX:

  • HDCVT 1-4 HDMI 2.0 Splitter with Scaler/Audio Extract – Black x1
  • Power Adapter x1
  • User Manual x1
