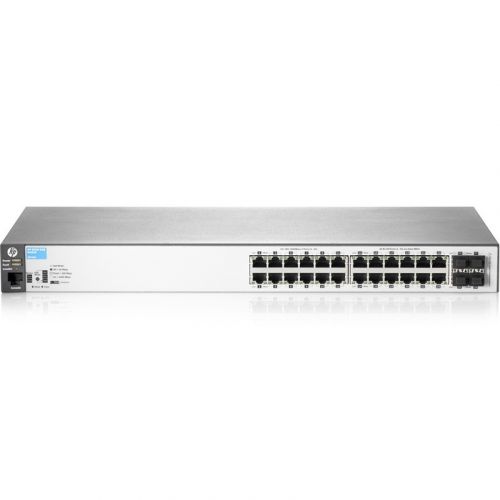

J9776A Aruba 2530 24G Switch



Aruba 2530 24G Switch

Available on backorder


The Aruba J9776A 2530 Switch Series provides security, reliability, and ease of use for enterprises, branch offices, and SMBs. This series of fully managed switches delivers full Layer 2 capabilities with enhanced access security, ACLs, traffic prioritization, sFlow, and IPv6 host support. Right size deployment is simple with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks. The 2530 delivers power savings with fanless models, Energy Efficient Ethernet, ability to disable LEDs and enable port low power mode. These switches provide consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.


Aruba 2530 24G Switch



Actual Weight

Compatibility NotesTraffic prioritization (IEEE 802.1p) — allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP).

Simplified QoS configuration.

Class of Service (CoS) — sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ.

Rate limiting — sets per-port ingress enforced maximums for all ingressed traffic, or for broadcast, multicast or unknown destination traffic.

Layer 4 prioritization — enables prioritization based on TCP/UDP port numbers.

Flow control — helps deliver reliable communication during full-duplex operation.

Virtual stacking — single IP address management up to 16 switches.

sFlow (RFC 3176) — wire-speed traffic accounting and monitoring configured by SNMP and CLI with three terminal encrypted receivers.

IEEE 802.1AB Link Layer Discovery Protocol (LLDP) — automates device discovery protocol for easy mapping by network management applications.

Logging — provides local and remote logging of events via SNMP (v2c and v3) and syslog; provides log throttling and log filtering to reduce the number of log events generated.

Port mirroring — allows traffic to be mirrored on any port or a network analyzer to assist with diagnostics or detecting network attacks.

RMON (remote monitoring) — provides advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Find-Fix-Inform — finds and fixes common network problems automatically, then informs the administrator.

Friendly port names — allow assignment of descriptive names to ports.

Dual flash images — provide independent primary and secondary operating system files for backup while upgrading.

Multiple configuration files — allow multiple configuration files to be stored to a flash image.

IPv6 host — allows the switch to be deployed and managed at the edge of an IPv6 network.

Dual stack (IPv4/IPv6) — supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6.

MLD snooping — forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.

IEEE 802.3af Power over Ethernet (PoE) — provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras.

IEEE 802.3at Power over Ethernet Plus — provides up to 30 W per port to IEEE 802.3 for PoE/PoE+ powered devices such as video IP phones, IEEE 802.11n wireless access points and advanced pan/tilt/zoom security cameras (see product specifications for total PoE power available).

Auto-MDIX — adjusts automatically for straight-through or crossover cables on all ports.

Pre-standard PoE support — detects and provides power to pre-standard PoE devices.

Small Form-Factor Pluggable (SFP) slots — provides fiber connectivity such as Gigabit-SX, -LX, -LH, and -BX with four SFP slots.

Dual-personality (RJ-45 or USB micro-B) serial console port — gives easy access to switch CLI via front switch location of dual-personality RJ-45 or USB micro-B serial console port.
