Description
The Aruba J9782A 2530 Switch Series provides security, reliability, and ease of use for enterprises, branch offices, and SMBs. This series of fully managed switches delivers full Layer 2 capabilities with enhanced access security, ACLs, traffic prioritization, sFlow, and IPv6 host support. Right size deployment is simple with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks. The 2530 delivers power savings with fanless models, Energy Efficient Ethernet, ability to disable LEDs and enable port low power mode. These switches provide consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.

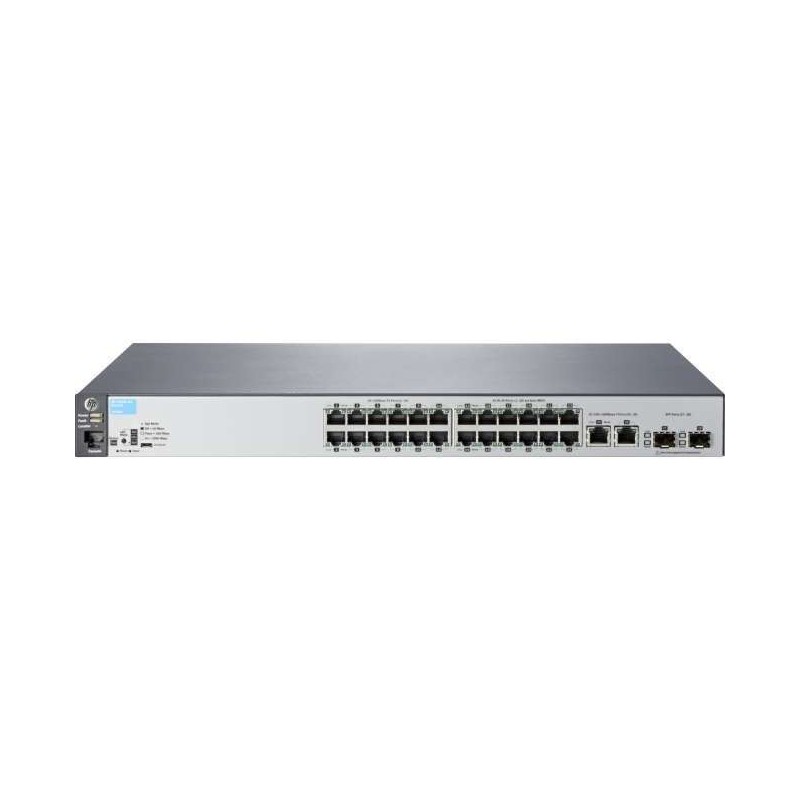

Aruba 2530 24 Switch
Specifications
J9782A
Product Differentiator (long)
24-port fully managed Fast Ethernet switch with Gigabit uplinks. This model has 24x 10/100 ports. Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports.
Power Consumption Description
14.7 W (maximum)
Heat Dissipation
50 BTU/hr (52.75 kJ/hr)
Input Voltage
100 – 127 / 200 – 240 VAC, rated
External I/O Ports
(24) RJ-45 autosensing 10/100 ports (2) autosensing 10/100/1000 ports (2) fixed Gigabit Ethernet SFP ports
Latency
100 Mb Latency: < 1.7 µs 1000 Mb Latency: < 1.1 µs
Switching Capacity
12.8 Gbps
Stacking Capabilities
Virtual 16 switches
Throughput
up to 9.5 Mpps
Memory and Processor
ARM9E @ 800 MHz 128 MB flash Packet buffer size: 1.5 MB dynamically allocated 256 MB DDR3 DIMM
Management Features
Aruba Central and Aruba AirWave Network Management IMC—Intelligent Management Center command-line interface Web browser configuration menu out-of-band management (serial RS-232C or Micro USB) IEEE 802.3 Ethernet MIB Repeater MIB Ethernet Interface MIB AirWave Network Management
