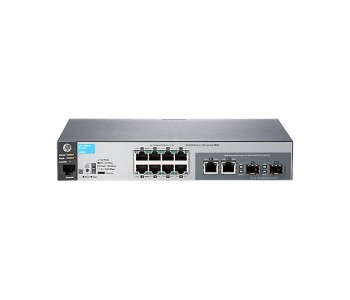

J9783A Aruba 2530 8 Switch



Aruba 2530 8 Switch

Available on backorder


The Aruba J9783A 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified security and management tools such as Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.


Aruba 2530 8 Switch



Actual Weight

Compatibility Notes
Quality of Service (QoS):
Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP).

Simplified QoS configuration: Port-based: prioritizes traffic by specifying a port and priority level. VLAN-based: prioritizes traffic by specifying a VLAN and priority level.

Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ.

Rate limiting: sets per-port ingress enforced maximums for all ingressed traffic or for broadcast, multicast, or unknown destination traffic.

Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers.

Choice of management interfaces: Web graphical user interface (GUI): HTML-based easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): provides advanced configuration and diagnostics through a robust CLI. Simple Network Management Protocol (SNMPv1/v2c/v3): allows a switch to be managed with a variety of third-party network management applications.

Virtual stacking: provides single IP address management of up to 16 switches.

sFlow (RFC 3176): delivers wire-speed traffic accounting and monitoring configured by SNMP and CLI with three terminal encrypted receivers.

IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automates device discovery protocol for easy mapping by network management applications.

Logging: provides local and remote logging of events via SNMP (v2c and v3) and syslog; provides log throttling and log filtering to reduce the number of log events generated.

IPv6: IPv6 host: allows the switch to be deployed and managed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.

IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras.

IEEE 802.3at Power over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE/PoE+ powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/tilt/zoom security cameras (see product specifications for total PoE power available).

Auto-MDIX: adjusts automatically for straight-through or crossover cables on all ports.

Layer 2 switching:
VLANs: provides support for 512 VLANs and 4,094 VLAN IDs.


Jumbo packet support: supports up to 9220-byte frame size to improve the performance of large data transfers. The 8 and 24 port Fast Ethernet models automatically support up to 2000-byte frames with no configuration needed.

16K MAC address table: provides access to many Layer 2 devices.

GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs.

# Ports: 8

General Information
100 Mb Latency: < 1.3 µs
1000 Mb Latency: < 1.3 µs

Throughput: up to 4.1 Mpps

Switching capacity: 5.6 Gbps

RAM (installed): 256 MB

Memory Notes
128 MB flash

(8) RJ-45 autosensing 10/100 ports
(2) dual-personality ports
(1) serial console port

Power Notes
AC 120/230 V ( 50/60 Hz )
Consumption: 7.2W (max); 4.5W (standby)

Networking Protocol: Fast Ethernet, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Remote Management Protocol: CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet, TFTP
