Description

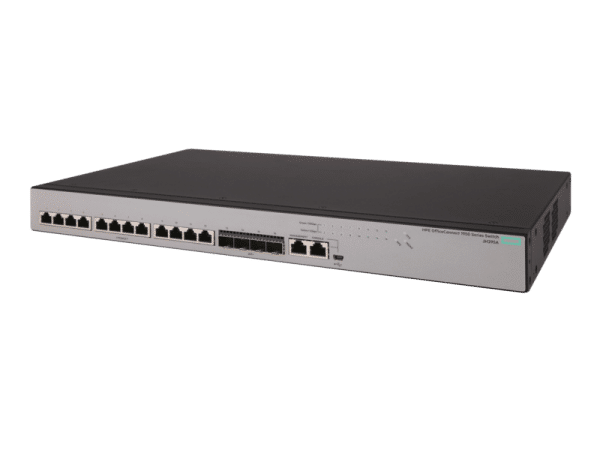

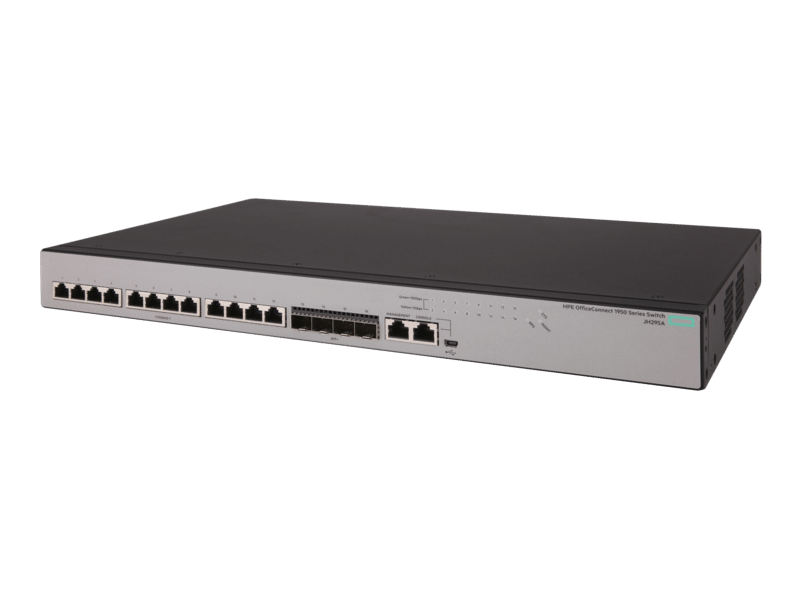

JH295A HPE 1950 12XGT 4SFP+ Switch web managed
Technical Specifications
Differentiator
- Advanced smart web managed 10G aggregator for small business core.
This model is a 10-Gigabit aggregator switch with 12x 10GBASE T copper ports and four SFP+ ports for SFP+/SFP fiber connections.
Ports
- Model dependent: 28-port models have (24) 10/100/1000 ports plus (2) fixed GE/10G SFP+ and (2) GE/10GBase-T ports. 52-port models have (48) 10/100/1000 ports plus (2) fixed GE/10G SFP+ and (2) GE/10GBase-T ports. Two models with PoE+. Console port on all units.
Latency
- 100 Mb Latency: < 5 µs
1000 Mb Latency: < 5 µs
10 Gbps Latency: < 1.5 µs
Throughput
- Model dependent: 28-port models 95.2 Mpps, 52-port models 130.9 Mpps.
Routing/switching capacity
- Model dependent: 28-port models 128 Gbps, 52-port models 176 Gbps.
PoE capability
- Both PoE+ models support 370 Watt PoE/PoE+ power budget. For 48-Port PoE+ model, optional RPS for up to 780 Watt PoE/PoE+ power budget.
Stacking capabilities
- Four-high resilient stacking using dual 10GbE ports (copper or fiber) 40 Gbps total stacking bandwidth.
Management features
- IMC – Intelligent Management Center
Limited command-line interface
Web browser
SNMP manager
HTTPS
RMON1
FTP
Supported by HPE IMC and generic SNMP management platforms. Refer to documentation for MIB support details.
Input voltage
- 100-240 VAC
