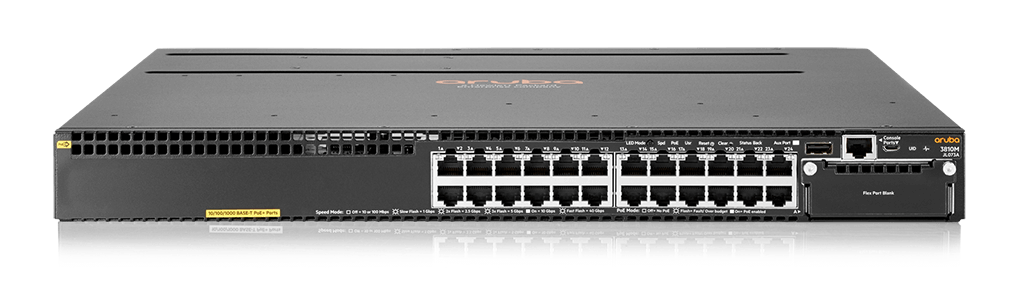

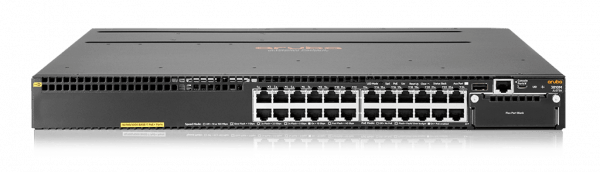

JL073A Aruba 3810M 24G PoE+ 1-slot Switch



Aruba 3810M 24G PoE+ 1-slot Switch

Available on backorder


The Aruba JL073A 3810 Switch Series is an industry-leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed IEEE 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow. Right-size deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning available on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor. Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, Tunneled node, robust QoS, and policy-based routing are included with no software licensing.


Aruba 3810M 24G PoE+ 1-slot Switch



(24) RJ-45 autosensing 10/100/1000 PoE+ ports Ports 1 – 24 support MACSec (1) open module slot Supports a maximum of 4 SFP+ ports or 1 40GbE ports, with optional module

Memory and processor
Dual ARM Coretex A9 @ 1 GHz 2 GB DDR3 SDRAM Packet buffer size: 13.5 MB Internal

1000 Mb Latency: < 2.8 µs 10 Gbps Latency: < 1.8 µs 40 Gbps Latency: < 1.5 µs

up to 95.2 Mpps

Routing/switching capacity
160 Gbps

Switch fabric speed
169 Gbps

PoE capability
840 W maximum, depending on configuration

Stacking capabilities
10 switches
Management features
Aruba AirWave Network Management Aruba Central IMC – Intelligent Management Center Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) In-line and out-of-band Out-of-band management (serial RS-232C or micro USB)

Input voltage
100-240 VAC Depending on installed options, model and configuration

Operating humidity range
15 to 95% @ 104°F (40°C) (noncondensing)

Minimum dimensions ( H x W x D)
44.25 x 43.13 x 4.39 cm

5.91 kg
