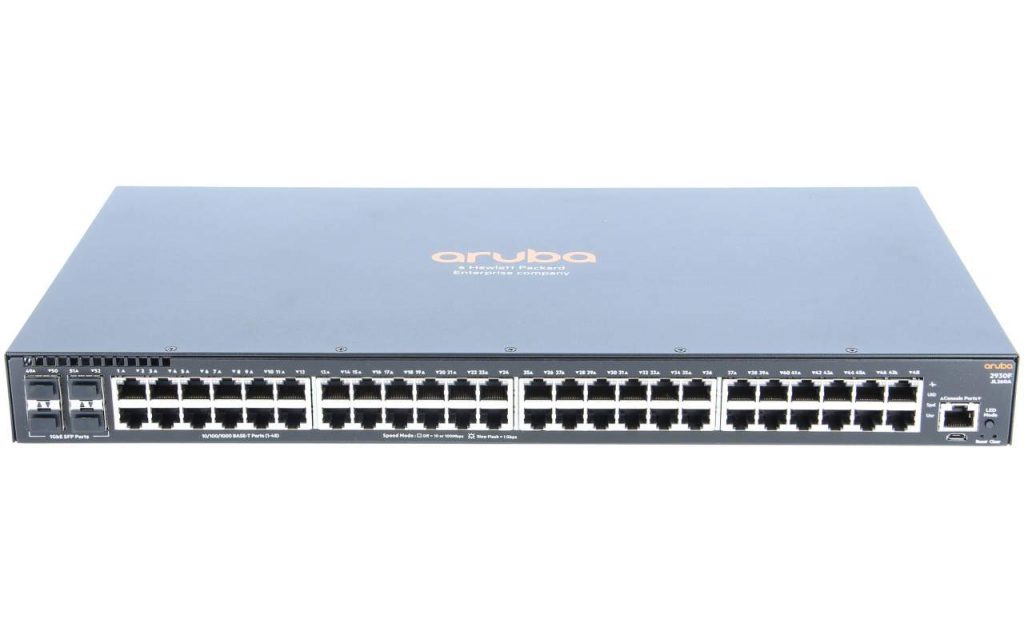

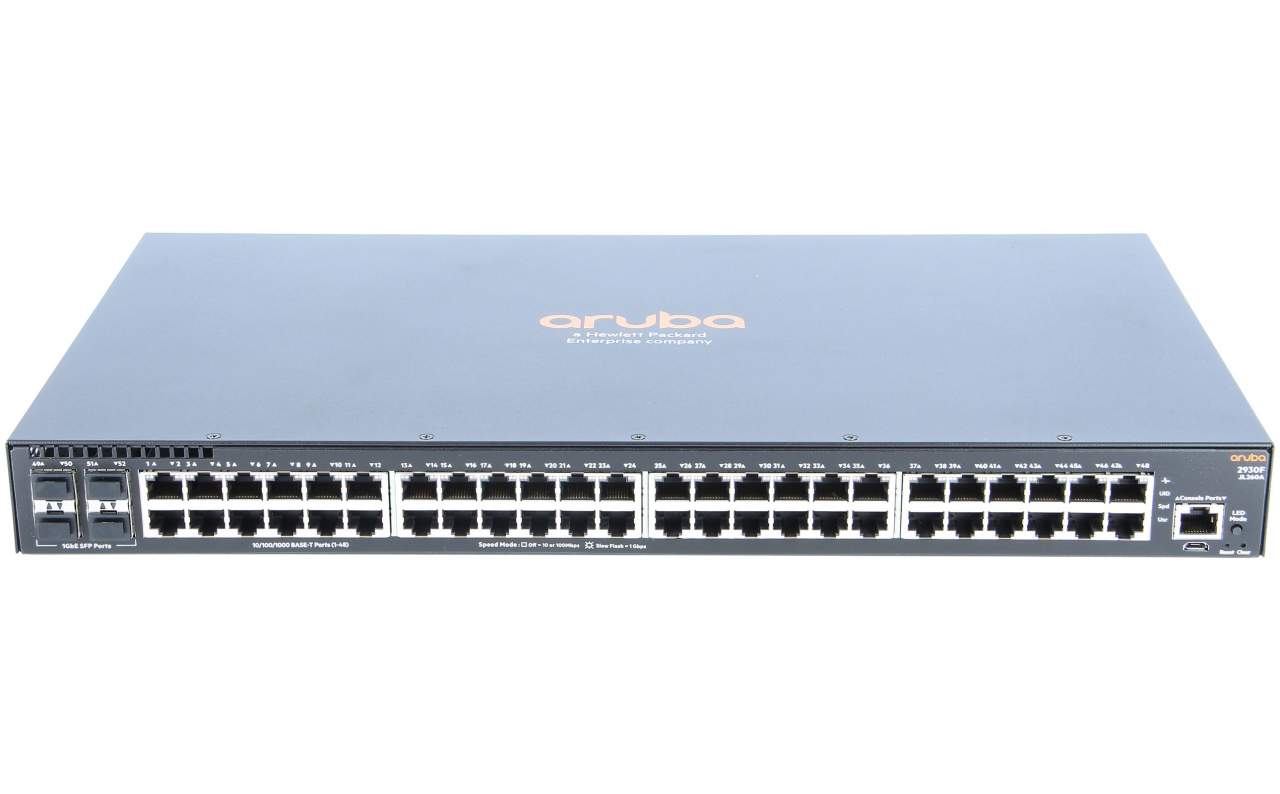

JL260A Aruba 2930F 48G 4SFP Switch

R27,924.30

JL260A

Aruba 2930F 48G 4SFP Switch

Available on backorder

Description

The Aruba JL260A 2930F Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with support of the latest SDN apps with future proof programmability for tomorrow’s applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Tunnel node, robust QoS, RIP routing, and IPv6 with no software licensing required.

JL260A

Aruba 2930F 48G 4SFP Switch

Specifications

JL260A

Device Type
Switch – 48 ports – L3 – Managed

Enclosure Type
Side to side airflow rack-mountable 1U

Subtype
Gigabit Ethernet

Ports
48 x 10/100/1000 + 4 x Gigabit SFP

Performance
Throughput: 77.4 Mpps ¦ Switching capacity: 104 Gbps ¦ Latency (1 Gbps): 3.8 µs

Capacity
IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 ¦ MAC address entries: 32768

MAC Address Table Size
32K entries

Jumbo Frame Support
9220 bytes

Routing Protocol
OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR

Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON

Features
Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, Energy-Efficient Ethernet (EEE)

Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX

Power
AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)
44.25 cm x 24.63 cm x 4.39 cm

Weight
3.1 kg
