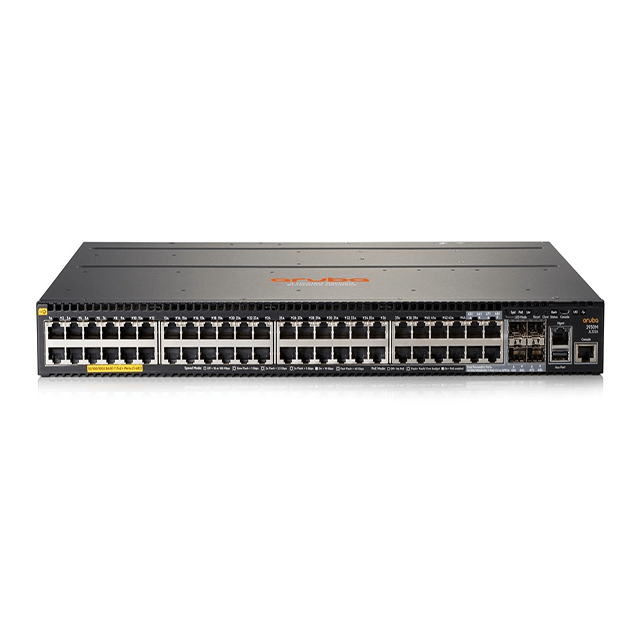

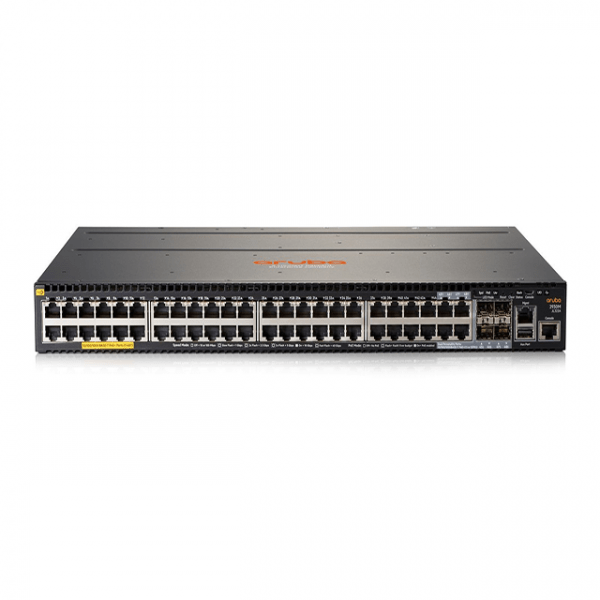

JL324A Aruba 2930M 24 Smrt Rte PoE+ 1s Switch



Aruba 2930M 24 Smrt Rte PoE+ 1s Switch

Available on backorder


The Aruba JL324A 2930M Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with support of the latest SDN apps with future proof programmability for tomorrow’s applications. High performance modular stacking for up to 10 switches provides pay as you grow scalability and simplicity. The 2930M supports 10GbE and 40GbE uplinks, Dual Modular Power Supplies, up to 1440 Watts of PoE+, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, robust QoS, RIP, Access OSPF routing, Tunnel Node, PIM, VRRP and IPv6 with no software licensing required.


Aruba 2930M 24 Smrt Rte PoE+ 1s Switch



General Information
1000 Mbps Latency < 3.1µs (FIFO 64-byte packets)
2.5 Gbps Latency: < 6.5µs (FIFO 64-byte packets)
5 Gbps Latency: < 4.2µs (FIFO 64-byte packets)
10 Gbps Latency: < 3.4µs (FIFO 64-byte packets)
Throughput: 112 Mpps
Stacking Performance: 100 Gbps
Switching Capacity: 320 Gbps
Switching Capacity (Including Stacking): 420 Gbps
Routing Table Size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
Mac Address Table Size: 32768 entries
Primary Airflow Direction: Port to Power

RAM (installed): 1 GB

Memory Notes
Processor: Dual Core ARM Cortex A9 @ 1016 MHz
Packet Buffer Size: 12.38MB and 4.5MB Ingress/7.875MB Egress

(24) 1/2.5/5GBaseT PoE+ autosensing
(1) RJ45/USB micro-B dual personality serial console
(1) USB Type B
(1) FE (100Base-T) out of band management
(1) uplink slot
(1) stacking module slot
(2) power supply slots (power supplies sold separately)

Power Notes
Idle Power: 95W
PoE Power (Max Possible): 860W

Number of Cores: Dual-Core
Processor Manufacturer: ARM
Processor Model Number: A9
Processor Type: Cortex

Networking Protocol: Gigabit Ethernet, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, PoE+
Remote Management Protocol: CLI, FTP, HTTP, RMON 1, SNMP, Telnet
Routing Protocol: CIDR, ECMP, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
