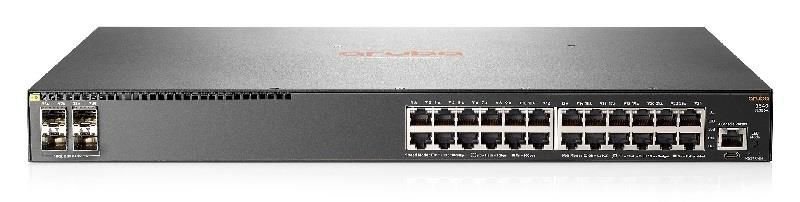

JL354A Aruba 2540 24G 4SFP+ Switch



Aruba 2540 24G 4SFP+ Switch

Available on backorder


Designed for the digital workplace, the Aruba JL354A 2540 Switch Series is optimized for mobile users. With advanced security and network management tools—Aruba ClearPass Policy Manager and Aruba AirWave—this layer-2 access switch is easy to deploy and manage. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support. A powerful Aruba ProVision ASIC delivers performance, robust feature support, and value with flexible programmability for future applications. The Aruba 2540 Switch Series provides a convenient and cost-effective wired access solution that can be quickly set up with Zero Touch Provisioning. PoE+ models deliver power across all access ports for wireless APs, security cameras, and IoT devices.


Aruba 2540 24G 4SFP+ Switch



(24) RJ-45 autosensing 10/100/1000 ports (4) SFP+ 1/10GbE ports PHY-less

Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC

1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs

up to 95.2 Mpps

Switching capacity
128 Gbps

Management features
Aruba AirWave Network Management IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)

Input voltage
100 – 127 / 200 – 240 VAC, rated

Operating humidity range
15 to 95% @ 104°F (40°C) (noncondensing)

Power Consumption
29.3 W (maximum)

Heat dissipation
100 BTU/hr (105.5 kJ/hr)

Minimum dimensions ( H x W x D)
44.25 x 20.02 x 4.39 cm

2.41 kg
