Description
The Aruba JL428A 3810 Switch Series is an industry-leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed IEEE 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow. Right-size deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning available on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor. Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, Tunneled node, robust QoS, and policy-based routing are included with no software licensing.

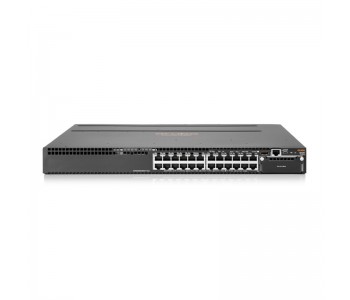

Aruba 3810M 48GPoE+4SFP+680W Switch
Specifications
JL428A
Device Type
Switch – 48 ports – L3 – managed – stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
Performance
Latency (1000Base-T): 2.8 µs | Latency (10 Gbps): 1.8 µs | Latency (40 Gbps): 1.5 µs | Throughput (64-byte packet size): up to 190.5 Mpps | Routing/switching capacity: 320 Gbps | Switching fabric bandwidth: 338 Gbps
Capacity
IPv4 routing table entries: 10000 | IPv6 routing table entries: 5000
MAC Address Table Size
64K entries
Jumbo Frame Support
Yes
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, BGP, VRRP, OSPFv2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
ARP support, Spanning Tree Protocol (STP) support, Per-VLAN Spanning Tree (PVST), Access Control List (ACL) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Uni-Directional Link Detection (UDLD), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Class of Service (CoS), sFlow v5, Type of Service (ToS), OpenFlow support, Internet Control Message Protocol (ICMP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at
Processor
2
RAM
6 GB DDR3 SDRAM
Flash Memory
1 GB
