Description

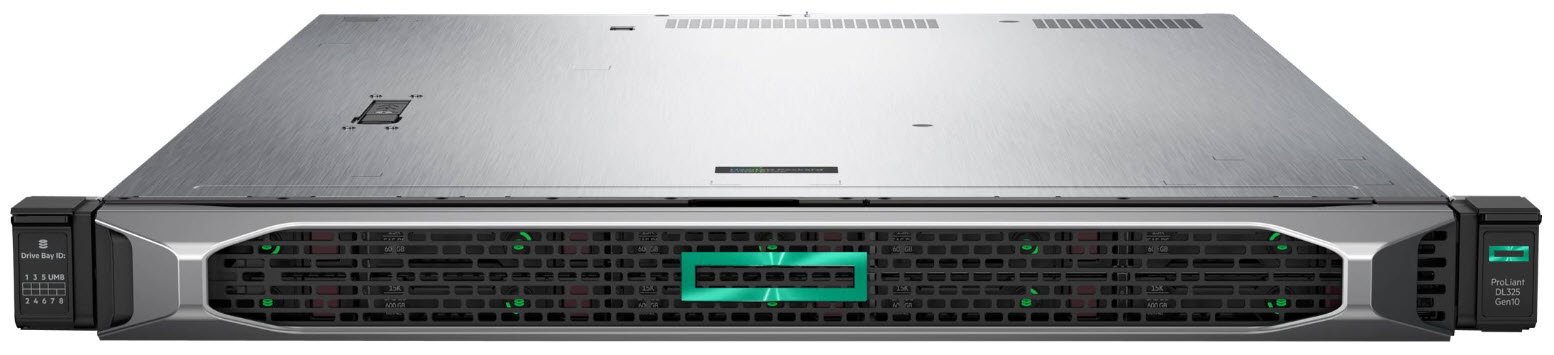

The HPE ProLiant P17201-B21 DL325 Gen10 Server is the secure and versatile single socket server for virtualization and I/O intensive workloads. This server delivers and exceptional balance of processor, memory and I/O for 2P performance at 1P TCO. Get the most out of your virtualized environment with this versatile server.
HPE ProLiant DL325 Gen10 Performance
Specifications
P17201-B21
General
Type
Server
Product Form Factor
Rack-mountable – 1U
Built-in Devices
LED panel, battery
Server Scalability
1-way
Hot-Swap Bays Qty
8
Processor / Chipset
CPU
AMD EPYC 7302P / 3 GHz
Max Turbo Speed
3.3 GHz
Number of Cores
16-core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
CPU Socket
Socket SP3
Cache Memory
Installed Size
L3 cache – 128 MB
Cache Per Processor
128 MB
RAM
Installed Size
16 GB / 1 TB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
2933 MHz
Rated Memory Speed
2933 MHz
Form Factor
DIMM 288-pin
Slots
16 (total) / 15 (empty)
Features
Registered, HPE SmartMemory
Configuration Features
1 x 16 GB
RAM Supported
PC4-20800 – 2 TB Load-Reduced | PC4-20800 – 1 TB registered
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P408i-a
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size
2 GB
Optical Storage
Type
No optical drive
Card Reader
Type
Card reader
Supported Flash Memory Cards
microSD
Monitor
Monitor Type
None.
Graphics Controller
Video Memory
16 MB
Video Interfaces
VGA
Networking
Ethernet Ports
4 x Gigabit Ethernet
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external | 8 (total) / 8 (free) x hot-swap 2.5″ SFF
Slots
1 (total) / 1 (free) x FlexibleLOM – three-quarter-length, full-height (low-profile) | 1 (total) / 1 (free) x PCIe 3.0 x16 – full-height | 1 (total) / 1 (free) x PCIe 3.0 x8 (low-profile) | 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
1 x HPE iLO – Type A (1 in front) | 5 x USB 3.0 (1 front, 2 rear, 2 internal) | 4 x LAN (Gigabit Ethernet) – RJ-45 (4 rear) | 1 x HPE iLO – RJ-45 (1 rear) | 1 x VGA (1 rear)
