Description

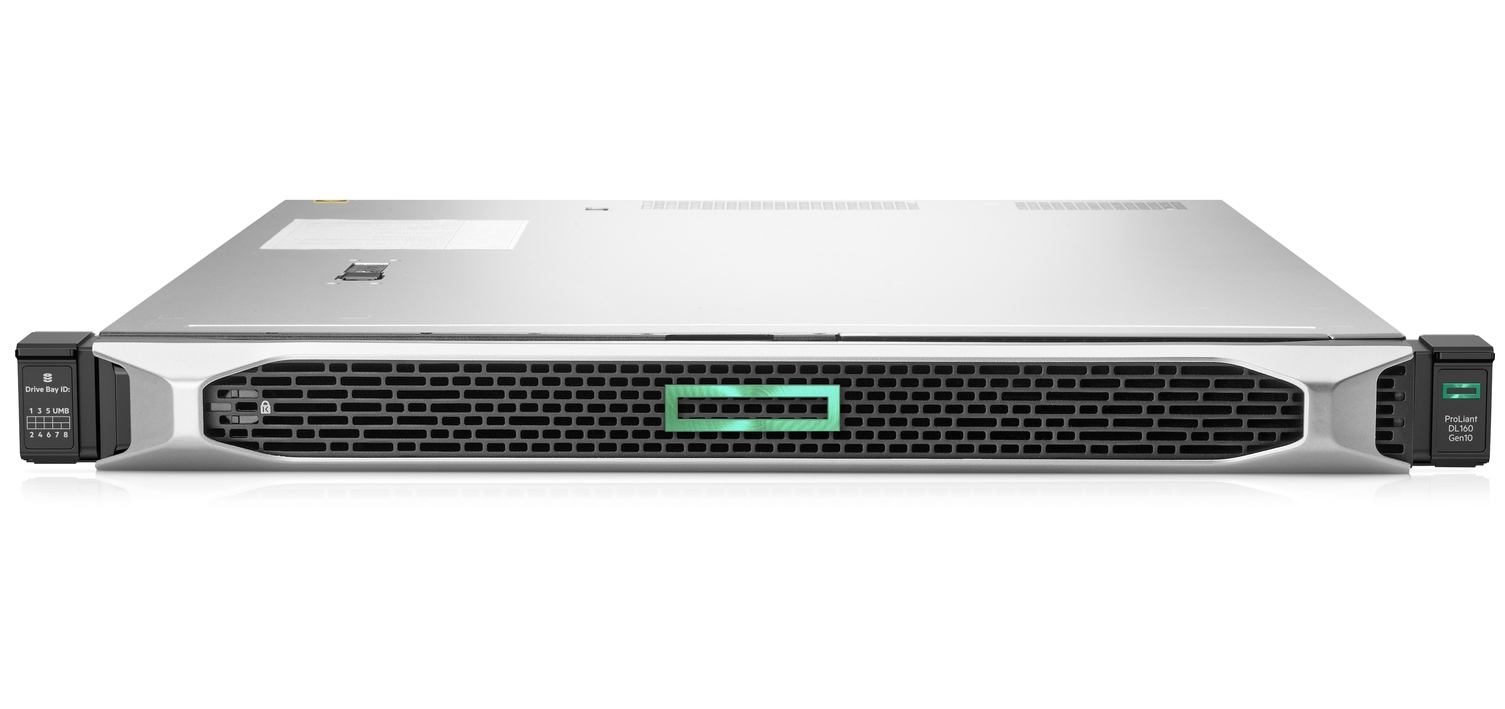

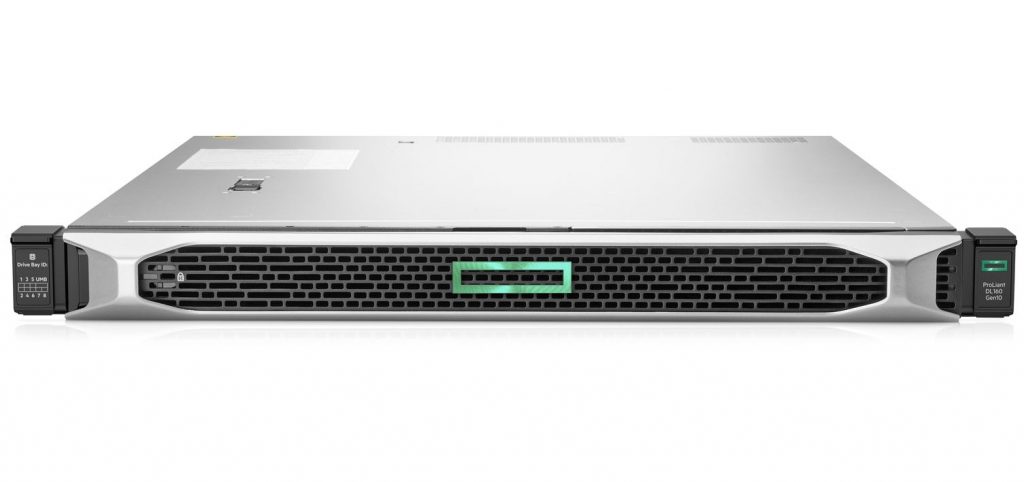

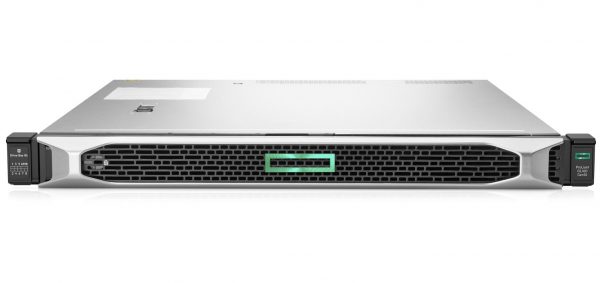

Are you searching for a dense server with exceptional value to run on-premises and hybrid cloud solutions? The secure 2P 1U HPE ProLiant P19560-B21 DL160 Gen10 server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of growing businesses of a diverse set of customers – from SMB to service providers running a wide range of workloads at a compelling price point.
HPE ProLiant DL160 Gen10
Specifications
P19560-B21
Type
Server
Product Form Factor
Rack-mountable – 1U
Server Scalability
2-way
Hot-Swap Bays Qty
8
CPU
Intel Xeon Silver 4208 / 2.1 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Chipset Type
Intel C622
Installed Size
L3 cache – 11 MB
Cache Per Processor
11 MB
Installed Size
16 GB / 1 TB (max)
Technology
DDR4 SDRAM – Advanced ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2933 MHz
Form Factor
DIMM 288-pin
Slots
16 (total) / 15 (empty)
Features
Registered, Online Spare Memory, HPE SmartMemory, 6-channel memory architecture
Configuration Features
1 x 16 GB
Type
No HDD
Type
1 x SATA – PCIe 3.0 x4
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i
Channel Qty
14
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10
Type
No optical drive
Monitor Type
None.
Video Interfaces
VGA
Ethernet Ports
2 x Gigabit Ethernet
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Bays
8 (total) / 8 (free) x hot-swap 2.5″ SFF
Slots
1 (total) / 1 (free) x microSD Card (internal) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 – low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 – half-length, full-height
Interfaces
1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 1 x HPE iLO – RJ-45 ¦ 4 x USB 3.0 (1 front, 2 rear, 1 internal)
