P20172-B21 HPE ProLiant DL380 Gen10

R61,104.10

P20172-B21

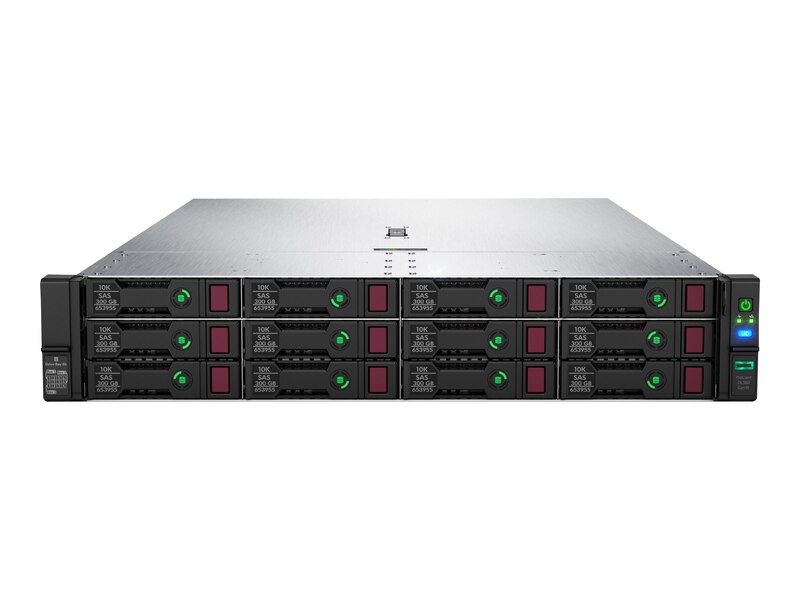

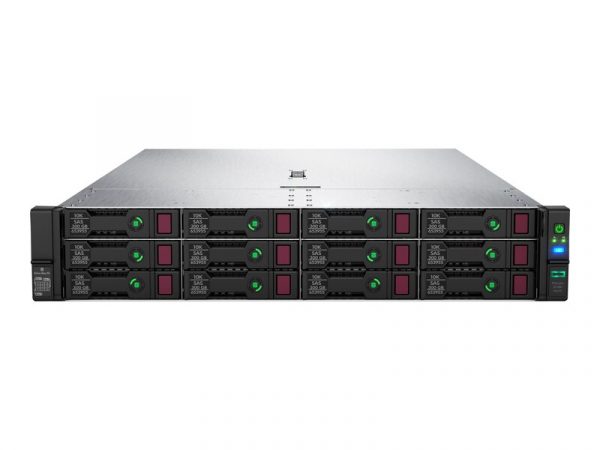

HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 16GB-R P816i-a NC 12LFF 800W RPS Server

Available on backorder

Description

What is your server bottleneck…storage, compute, expansion? The world’s best-selling server1 just got better. The HPE ProLiant P20172-B21 DL380 Gen10 Server delivers the latest in security, performance and expandability. While backed by a comprehensive warranty, makes it ideal for any server environment. Standardize on the industry’s most trusted compute platform. The HPE ProLiant DL380 Gen10 Server is securely designed to reduce costs and complexity, the Intel® Xeon® Processor Scalable Family with up to a 71% performance gain and 27% increase in cores, plus the HPE 2666 MT/s DDR4 SmartMemory supporting 3.0 TB and up to 11% faster than 2400 MT/s. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory, optimized on HPE ProLiant Servers, offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission critical applications, and deploy with confidence.

P20172-B21

HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 16GB-R P816i-a NC 12LFF 800W RPS Server

Specifications

P20172-B21

Type
Server

Product Form Factor
Rack-mountable – 2U

Built-in Devices
Battery

Server Scalability
2-way

Hot-Swap Bays Qty
12

Processor / Chipset

CPU
Intel Xeon Silver 4208 / 2.1 GHz

Max Turbo Speed
3.2 GHz

Number of Cores
8-core

CPU Qty
1

Max CPU Qty
2

CPU Upgradability
Upgradable

Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2

CPU Socket
FCLGA3647 Socket

Chipset Type
Intel C621

Cache Memory

Installed Size
L3 cache – 11 MB

Cache Per Processor
11 MB

RAM

Installed Size
32 GB / 1.5 TB (max)

Technology
DDR4 SDRAM – Advanced ECC

Effective Memory Speed
2400 MHz

Rated Memory Speed
2933 MHz

Form Factor
DIMM 288-pin

Slots
24 (total) / 23 (empty)

Features
Registered, dual rank, slots 13 – 24 are available in two-processor configuration only, HPE SmartMemory, 6-channel memory architecture

Configuration Features
1 x 32 GB

RAM Supported
3 TB Load-Reduced – ECC ¦ 1.5 TB registered – ECC ¦ 192 GB Non-Volatile – ECC

Hard Drive

Type
No HDD

Storage Controller

Type
1 x RAID – PCIe 3.0 x8

Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s

Storage Controller Name
HPE Smart Array P816i-a

Channel Qty
16

RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Buffer Size
4 GB

Optical Storage

Type
No optical drive

Monitor

Monitor Type
None.

Graphics Controller

Video Memory
16 MB

Video Interfaces
VGA

Networking

Ethernet Ports
4 x Gigabit Ethernet

Ethernet Controller
HPE 366FLR

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol
SNMP

Remote Management Controller
Integrated Lights-Out 5

Features
PXE support

Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Expansion / Connectivity

Bays
12 (total) / 12 (free) x hot-swap 3.5″ LFF

Slots
1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 – half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 – half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)

Interfaces
4 x LAN (Gigabit Ethernet) – RJ-45 ¦ 1 x HPE iLO – RJ-45 ¦ 1 x VGA ¦ 1 x HPE iLO – Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal)
