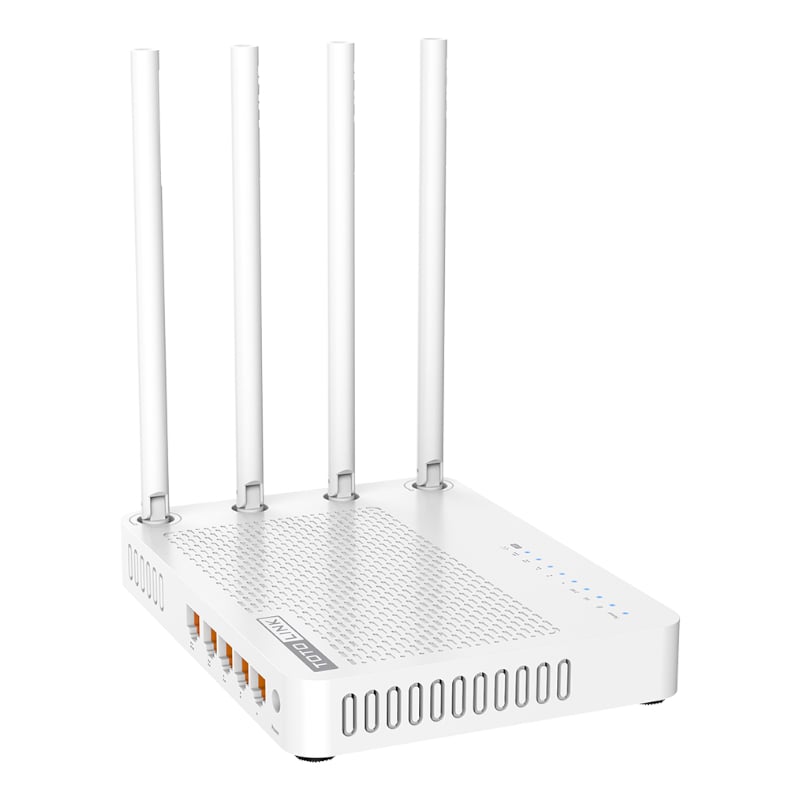

TOTOLINK A702R V4 1200MB 2.4/5GHz|4 x Antenna|802.11ac|4 x LAN|1 x WAN WiFi Wireless Router



The Totolink A702R V4 1200Mbps Dual-Band Wi-Fi Router complies with the latest IEEE802.11ac Wi-Fi standards, working on 2.4GHz and 5GHz simultaneously and delivering wireless speeds up to 1167Mbps. Equipped with four external omnidirectional antennas, the Totolink A702R V4 supports to transfer of the wireless signal to further the distance with high wall-through ability, ensuring stable wireless connections without any network delay. Beamforming Technology allows intensive transmission of the signal to wirelessly connected devices, such as cellphones, tablets and laptops, thus improving the wireless transmitting efficiency and Wi-Fi experience for the users.

The Band Steering function enables the A702R V4 to transmit two band signals by the same SSID. According to the real-time Internet rate of the terminal, it can choose the band with higher speed and less interference for users intelligently. It has features that steer wireless devices(dual-band capable) to connect to the faster 5GHz Wi-Fi and it can reduce congestion of 2.4GHz Wi-Fi for those devices that support 2.4GHz only. Therefore, Band Steering not only gives full play to the advantage of multi-band but also improves the user’s experience while surfing the internet.


  • Complies with the latest IEEE 802.11ac standards
  • 1167Mbps  Super Speed Wi-Fi
  • Dual-Band 2.4GHz and 5GHz support
  • Four external antennas for wide Wi-Fi coverage
  • Beamforming Technology
  • Band Steering support
  • Key for security lock function
  • Adaptive WAN/LAN ports
  • Supports DHCP, Static IP, PPPoE connection mode
  • Provides 64/128-bit WPA/WPA2 Mixed encryption
  • Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding


  • Colour: White
  • Interface: 5 *100Mbps Auto-identied WAN/LAN Port
  • Power Supply: 9V DC/0.8A
  • Button: 1 *RST Button, 1*Key for Security Lock Button
  • LED Indicator: 1*Power, 1*Key for Security Lock, 1*5G, 1*2.4G, 5*WAN/LAN
  • Antenna: 2 * 2.4GHz fixed antennas(5dBi), 2 * 5GHz fixed antennas(5dBi)
  • Wireless Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • RF Frequency: 2.4GHz/5GHz
  • Data Rate: 2.4GHz: Up to 300Mbps, 5GHz: Up to 867Mbps
  • EIRP: 2.4GHz < 20dBm, 5GHz < 20dBm
  • Wireless Security: WPA/WPA2 Mixed
  • Reception Sensitivity 2.4G: 11b 11M:-81dBm@8% PER, 11g 54M:-68dBm@10% PER, 11n HT20 MCS7:-65dBm@10% PER, HT40 MCS7:-62dBm@10% PER
  • Reception Sensitivity 5G: 11a 54M:-68dBm@10% PER, 11n HT20 MCS7:-65dBm@10% PER, HT40 MCS7:-62dBm@10% PER, 11ac VHT80 MCS9:-51dBm@10% PER
  • Operation Mode: Router Mode, Repeater Mode, AP Mode, WISP Mode
  • WAN Type: Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
  • Home: Easy setup, Basic setup, Advanced setup, QR Code, LED, Logout, Reboot
  • Network: WAN Setting, LAN Setting, IPTV Setting, DHCP&ARP Tables, Static Route, Routing Table, IPv6 Network, DDNS
  • Wireless: Basic Settings, Advanced Settings, Access Control, Wireless Schedule, Guest Network(Multiple SSID), Band Steering
  • Parental controls: Internet time control based on MAC, URL Restrictions
  • QoS: Up/Down speed control on WAN, Bandwidth control based on IP address
  • Firewall: MAC Filtering, IP/Port Filtering, URL Filtering
  • NAT Mapping: Virtual Server(Port Forwarding), DMZ, VPN passthrough
  • Wi-Fi Safety Lock: Root WiFi Lock, Guest WiFi Lock
  • System: Upgrade Firmware, Time Zone Settings, TR-069 Config, Password Settings, Reboot Schedule, System Log and so on
  • Product Dimensions: 17.4 x 12.8 x 2.6 cm (not including antennas)


  • Totolink A702R V4 1200Mbps Dual-Band Wi-Fi Router – White x1
  • Power Adapter x1
  • Ethernet Cable x1
  • Quick Installation Guide x1
