Description
The Cisco Catalyst WS-C2960X-24TD-L series switch is scalable and resilient. With Cisco FlexStack-Plus stacking, which allows stacking of up to 8 switches and delivers 80 Gbps of stacking bandwidth, the Cisco Catalyst 2960-X enables ease of operation and management with a single configuration across the members of the stack. The Cisco Catalyst 2960-X series is resilient, with control plane redundancy across FlexStack-Plus switches. This minimizes traffic disruption if any stack member fails.

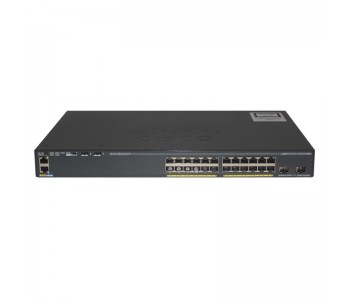

Cisco Catalyst 2960-X 24 GigE, 2 x 10G SFP+, LAN Base
Specifications
WS-C2960X-24TD-L
MTBF (Hours)
569520
Feature Set
LAN Base
Power (Voltage – auto-ranging)
100 to 240 VAC
Power (Current)
1A to 0.5A
Power consumption (weighted average)
32.3
Uplinks
2 SFP+
Power consumption (10% traffic)
32.2
Dimensions (inches)
1.75 x 11.0 x 17.5
Acoustics: Sound pressure (Typical/maximum)
42 dB / 46 dB
Weight (Kilograms)
4.0
Acoustics: Sound power (Typical/maximum)
5.1 B / 5.5 B
Power consumption (0% traffic)
24.9
Power consumption (100% traffic)
33.1
Power rating (switch maximum consumption)
0.034 kVA
Power (Frequency)
50 to 60 Hz
Flexstack-Plus and Flexstack-Extended Stacking
Optional
Dimensions (metric)
4.5 x 27.9 x 44.5cm
PoE+ Power
n/a
10/100/1000 Ethernet Ports
24
Weight (lbs)
8.9
Forwarding rate: 64-byte Layer 3 packets
95.2 Mpps
