Description

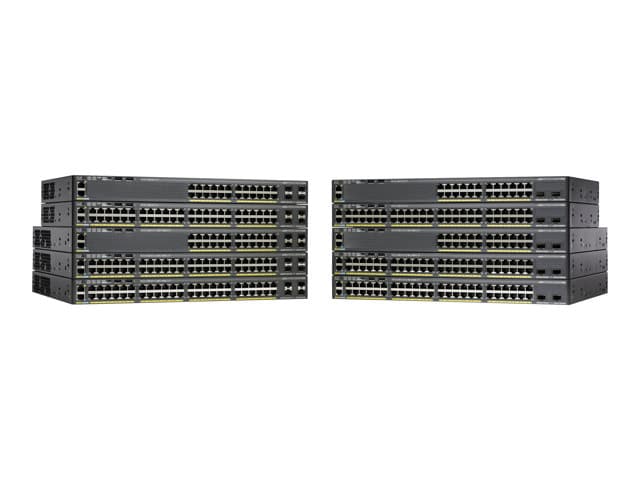

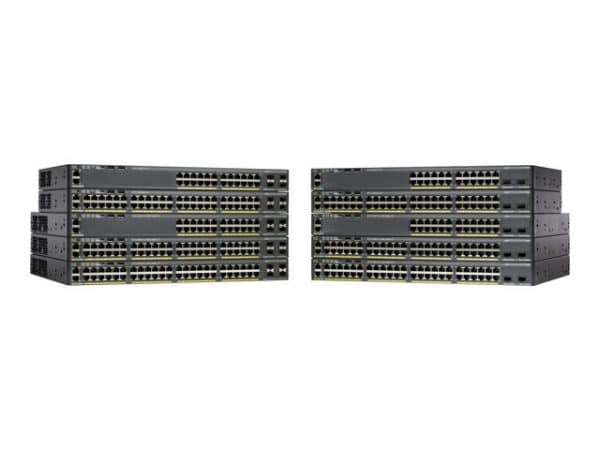

CISCO CATALYST 2960X-48FPD-L – SWITCH – MANAGED – 48 X 10/100/1000 (POE+) + 2 X 10 GIGABIT SFP+ – DESKTOP, RACK-MOUNTABLE – POE+ (740 W…
Product Overview
- Innovative energy saving hibernation modes that reduce energy consumption by up to 90% when the switch is not in use
- IEEE 802.3az EEE (Energy-Efficient Ethernet) enables dynamic power savings on all switch ports
- Auto Smart Ports automatically configures port settings based on device type for simplified configuration and rapid deployment
- NetFlow Lite detects IP packet types and provides enhanced visibility into the network
- IPv6 first hop security protects against IPv6 address theft and malicious attacks
- One policy through integration with Cisco Identity Services Engine (ISE) simplifies policy management
- One management through integration with Cisco Prime provides ease of use
Cisco Catalyst 2960-X series switch is the next generation of the world’s most widely deployed access switches. It enables intelligent services such as application visibility; smart operations layer 3 routing and deliver best-in-class energy efficiency with up to 80 percent energy savings.
- Scalable
The Cisco Catalyst 2960-X series switch is scalable and resilient. With Cisco FlexStack-Plus stacking, which allows stacking of up to 8 switches and delivers 80 Gbps of stacking bandwidth, the Cisco Catalyst 2960-X enables ease of operation and management with a single configuration across the members of the stack. The Cisco Catalyst 2960-X series is resilient, with control plane redundancy across FlexStack-Plus switches. This minimizes traffic disruption if any stack member fails. - Smart
The Cisco Catalyst 2960-X series enable intelligent access services, application visibility and control, and best-in-class energy management. Build for application visibility and control, these switches support NetFlow-Lite, which can be used to monitor, capture, and record traffic flows through the network. With industry-leading energy management capabilities such as Cisco EnergyWise to measure and control power usage, Energy Efficient Ethernet (EEE) and Switch and Downlink Hibernation modes to conserve power during periods of inactivity in the network, the Cisco Catalyst 2960-X with up to 80 percent energy savings is the greenest switch in the industry. - Simple
Cisco Catalyst 2960-X series switch is simple to deploy, manages, and troubleshoots. As part of the Cisco Unified Access portfolio, the Cisco Catalyst 2960-X series switch is fully integrated with Cisco Prime to offer simple operation from a central location. It can also be managed by Cisco Network Assistant, which features an intuitive GUI where users can easily apply common services across Cisco switches and routers.
Technical Specifications
| Product Description | Cisco Catalyst 2960X-48FPD-L – switch – 48 ports – Managed – rack-mountable |
| Device Type | Switch – 48 ports – Managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 130.9 Mpps |
| Capacity | Virtual interfaces (VLANs): 1023 |
| Jumbo Frame Support | 9216 bytes |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Features | Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames su |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 36.8 cm x 4.5 cm |
| Weight | 5.8 kg |
| Manufacturer Warranty | Limited lifetime warranty |
