Description
Cisco Catalyst WS-C2960X-48LPD-L Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS Software features.

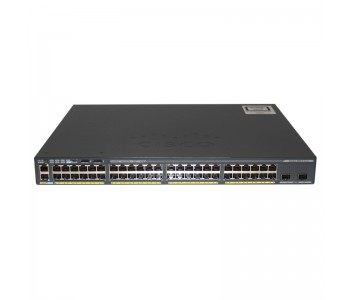

Cisco Catalyst 2960-X 48 GigE PoE 370W, 2 x 10G SFP+ LAN Base
Specifications
WS-C2960X-48LPD-L
MTBF (Hours)
277960
Feature Set
LAN Base
Power (Voltage – auto-ranging)
100 to 240 VAC
Power (Current)
5A to 2A
Power consumption (weighted average)
61.2
Uplinks
2 SFP+
Power consumption (10% traffic)
61.1
Dimensions (inches)
1.75 x 14.5 x 17.5
Acoustics: Sound pressure (Typical/maximum)
39 dB / 43 dB
Weight (Kilograms)
5.8
Acoustics: Sound power (Typical/maximum)
4.9 B / 5.3 B
Power consumption (0% traffic)
45.7
Power consumption (100% traffic)
62.0
Power rating (switch maximum consumption)
0.48 kVA
Power (Frequency)
50 to 60 Hz
Maximum PoE (IEE 802.3af) ports
24 ports up to 15.4W
Maximum PoE+ (IEEE 802.3at) ports
12 ports up to 30W
Flexstack-Plus and Flexstack-Extended Stacking
Optional
Dimensions (metric)
4.5 x 36.8 x 44.5cm
PoE+ Power
370W
10/100/1000 Ethernet Ports
48
Weight (lbs)
12.9
Forwarding rate: 64-byte Layer 3 packets
130.9 Mpps
