Description
Cisco Catalyst WS-C2960X-48TD-L series switch is fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS software features.

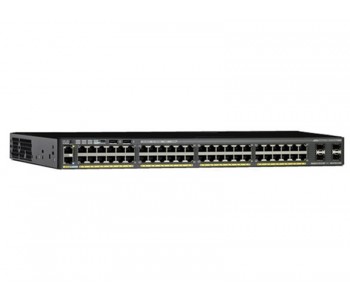

Cisco Catalyst 2960-X 48 GigE, 2 x 10G SFP+, LAN Base
Specifications
WS-C2960X-48TD-L
MTBF (Hours)
455460
Feature Set
LAN Base
Power (Voltage – auto-ranging)
100 to 240 VAC
Power (Current)
1A to 0.5A
Power consumption (weighted average)
47.1
Uplinks
2 SFP+
Power consumption (10% traffic)
47.0
Dimensions (inches)
1.75 x 11.0 x 17.5
Acoustics: Sound pressure (Typical/maximum)
42 dB / 46 dB
Weight (Kilograms)
4.3
Acoustics: Sound power (Typical/maximum)
5.1 B / 5.5 B
Power consumption (0% traffic)
32.9
Power consumption (100% traffic)
47.8
Power rating (switch maximum consumption)
0.049 kVA
Power (Frequency)
50 to 60 Hz
Flexstack-Plus and Flexstack-Extended Stacking
Optional
Dimensions (metric)
4.5 x 27.9 x 44.5cm
PoE+ Power
n/a
10/100/1000 Ethernet Ports
48
Weight (lbs)
9.6
Forwarding rate: 64-byte Layer 3 packets
130.9 Mpps
