Description

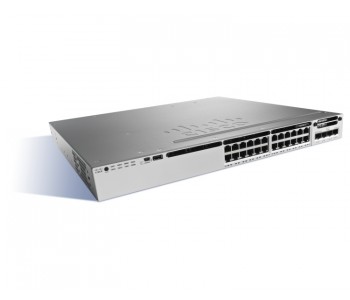

The Cisco WS-C3850-24T-L Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired plus wireless policy enforcement, application visibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480.
The IP Base feature set provides entry-level enterprise services in addition to all LAN Base features, with 1K VLANs. IP Base also includes the support for wireless controller functionality (mobility agent and mobility controller role; additional access point license required for mobility controller role), routed access, smart operations, FNF, and so on.
Cisco Catalyst 3850 24-Port Data LAN Base
Specifications
WS-C3850-24T-L
Actual Weight
15.9
Compatibility Notes
Integrated wireless controller capability with: Up to 40G of wireless capacity per switch (48 port models). Up to 50 access points (APs) and 2000 wireless clients support on each switching entity (switch or stack). 24 and 48 10/100/1000 data and Power over Ethernet Plus (PoE+) models with Energy Efficient Ethernet (EEE): Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput. Cisco StackPower technology provides power stacking among stack members for power redundancy. Three optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet or 4 x 10 Gigabit Ethernet ports. Dual redundant, modular power supplies and three modular fans providing redundancy. Full IEEE 802.3at (PoE+) with 30W power on all ports in 1 rack unit (RU) form factor. Software support for IPv4 and IPv6 routing, Multicast routing, modular quality of service (QoS), Flexible NetFlow (FnF) Version 9, and enhanced security features. Single Universal IOS image across all license levels, pr viding an easy upgrade path for software features. Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support.
Connectivity
# Ports: 24
Contents
Switch, documentation
Memory
RAM: 4 GB
Ports/Connectors(24) GbE RJ-45
(1) USB Type A
(1) console mini-USB Type B management
(1) RS-232 RJ-45 management
(1) GbE RJ-45 management
(2) network stack device
Power Notes
Default AC Power Supply: 350WAC
Protocols
Networking Protocol: Gigabit Ethernet, IEEE 802.3at
Remote Management Protocol: CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet
