Description

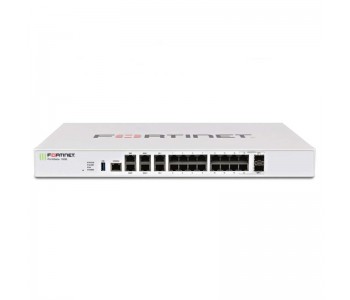

The FortiGate FG-100EF series delivers next Generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.
14x GE RJ45 Ports (Including 2x WAN Ports, 1x DMZ Port, 1x Mgmt Port, 2x HA Ports, 8x Internal Switch Ports), 8x SFP Ports. Maximum Managed FortiAPs (Total / Tunnel) 64/32
Specifications
FG-100EF
Actual Weight
7.3
General Information
Firewall Throughput (1518 / 512 / 64 byte UDP packets): 7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte UDP packets): 3 µs
Firewall Throughput (Packets Per Second): 6.6 Mpps
Concurrent Sessions (TCP): 2 Million
New Sessions/Second (TCP): 30,000
Firewall Policies: 10,000
IPsec VPN Throughput (512 byte packets): 4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2,000
Client-to-Gateway IPsec VPN Tunnels: 10,000
SSL-VPN Throughput: 250 Mbps
Concurrent SSL-VPN Users (Recommended Maximum): 300
SSL Inspection Throughput (IPS, HTTP): 190 Mbps
Application Control Throughput (HTTP 64K): 1 Gbps
CAPWAP Throughput (1444 byte, UDP): 1.5 Gbps
Virtual Domains (Default / Maximum): 10 / 10
Maximum Number of Switches Supported: 24
Maximum Number of FortiAPs (Total / Tunnel Mode): 64 / 32
Maximum Number of FortiTokens: 1,000
Maximum Number of Registered FortiClients: 600
High Availability Configurations: Active / Active, Active / Passive, Clustering
Optimal Traffic Mix:
IPS Throughput: 1.9 Gbps
Enterprise Traffic Mix:
IPS Throughput: 500 Mbps
NGFW Throughput: 360 Mbps
Threat Protection Throughput: 250 Mbps
Ports/Connectors
(8) GbE RJ45
(1) GbE RJ45 Management
(2) GbE RJ45 HA
(1) GbE RJ45 DMZ
(8) GbE SFP
(2) GbE RJ45 WAN
(1) USB
(1) Console
Power Notes
Power Required: 100–240V AC, 60–50 Hz
Maximum Current: 100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum): 24.4 W / 26.9 W
Protocols
Networking Protocol: Gigabit Ethernet
