Description

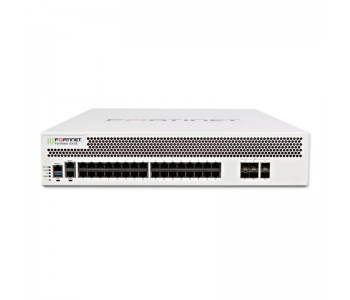

The FortiGate FG-2000E delivers high performance threat protection for mid-sized to large enterprises and service providers, with the flexibility to be deployed at the internet or cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, industry-leading security efficacy and high throughput of the 2000E keeps your network connected and secure.
6x 10GE SFP+ Slots, 34x GE RJ45 Ports (Including 32x Ports, 2x Management/HA Ports), SPU NP6 and CP9 Hardware Accelerated, 480 GB SSD Onboard Storage
Specifications
FG-2000E
General Information
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 90 / 90 / 60 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP): 90 / 90 / 60 Gbps
Firewall Latency (64 byte, UDP): 2 µs
Firewall Throughput (Packet per Second): 90 Mpps
Concurrent Sessions (TCP): 20 Million
New Sessions/Second (TCP): 500,000
Firewall Policies: 100,000
IPsec VPN Throughput (512 byte): 65 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 20,000
Client-to-Gateway IPsec VPN Tunnels: 100,000
SSL-VPN Throughput: 6 Gbps
Concurrent SSL-VPN Users (Recommended Maximum): 10,000
SSL Inspection Throughput (IPS, HTTP): 12.5 Gbps
Application Control Throughput (HTTP 64K): 20 Gbps
CAPWAP Throughput (1444 byte, UDP): 21 Gbps
Virtual Domains (Default / Maximum): 10 / 500
Maximum Number of Switches Supported: 128
Maximum Number of FortiAPs (Total / Tunnel): 4,096 / 1,024
Maximum Number of FortiTokens: 5,000
Maximum Number of Registered Endpoints: 20,000
High Availability Configurations: Active-Active, Active-Passive, Clustering
System Performance – Optimal Traffic Mix:
IPS Throughput: 25 Gbps
System Performance – Enterprise Traffic Mix:
IPS Throughput: 11.5 Gbps
NGFW Throughput: 9 Gbps
Threat Protection Throughput: 5.4 Gbps
Memory Notes
480GB Onboard Storage
Ports/Connectors
(6) 10GE SFP+, hardware accelerated
(32) GE RJ-45, hardware accelerated
(2) GE RJ-45 Management
(1) USB
(1) Console
Power Notes
AC Power Supply: 100 to 240V AC, 50 to 60Hz
Maximum Current: 9A
Power Consumption (Average/Maximum): 280/430W
Heat Dissipation: 1467BTU/hour
Protocols
Networking Protocol: 10 Gigabit Ethernet, Gigabit Ethernet, IPv4, IPv6, SSL, USB
Transport Protocol: IPSec
