Description

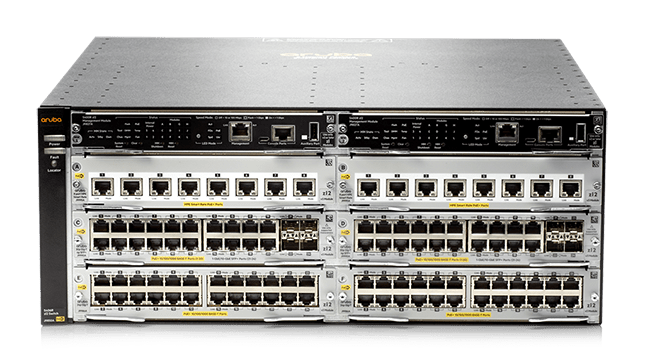

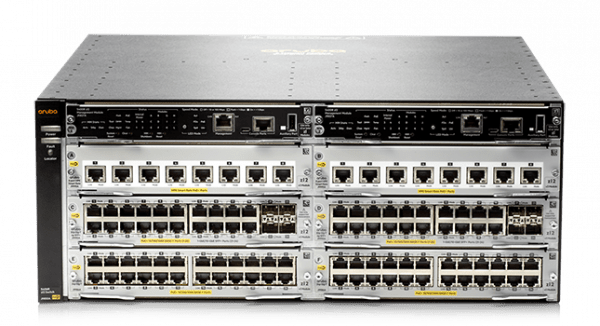

The Aruba J9821A 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HPE Smart Rate multi- gigabit ports for high-speed 802.11ac devices. It delivers enterprise-class resiliency with innovative flexibility and scalability for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. This series brings scalable aggregation with Virtual Switching Framework (VSF) stacking technology, hitless failover, and Fast Software Upgrade for 5400R VSF stacks. The advanced Layer 2 and 3 feature set includes OSPF, IPv6, IPv4 BGP, Tunneled Node, robust QoS and policy- based routing with no software licensing required.
Specifications
J9821A
The HP 5400R zl2 Switch Series provides enterprise-class resiliency and unprecedented flexibility, scalability and ease of use for enterprise edge, and SMB and branch office core deployments.High-speed, high-capacity architecture with 2 Tbps crossbar switching fabric delivers intra-module and inter-module switching with up to 785.7 million pps throughput.
Flexible connectivity options with 6 or 12 slot compact chassis for up to 96 ports of 10GbE (SFP+ and 10GBASE-T), up to 288 1GbE ports and up to 288 ports of PoE+ (9,250 W total PoE+ power budget).
SDN-ready with OpenFlow 1.3 support for future-proofing your network.
License-free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, OSPF and robust QoS.
Resiliency and High Availability at the Edge:
The HP 5400R zl2 Switch Series uses the 5th generation HP Networking ASIC and delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.
Nonstop switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
Redundant management and power provide enhanced system availability and continuity of operations.
Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
Powerful virtualization with versatile HP AllianceOne service modules.
Robust Security and Quality of Service for a Secure Network:
The HP 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a secure network that meets ever-changing corporate policies and compliances.
Flexible authentication options include IEEE 802.1X, MAC and Web Authentication, delivering greater security and policy-driven application authentication.
Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, to manage end-to-end application priorities.
Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH to secure and control change management access.
Single View of the Network:
The HP 5400R zl2 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
J9821A
