Description
The Aruba J9781A 2530 Switch Series provides security, reliability, and ease of use for enterprises, branch offices, and SMBs. This series of fully managed switches delivers full Layer 2 capabilities with enhanced access security, ACLs, traffic prioritization, sFlow, and IPv6 host support. Right size deployment is simple with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks. The 2530 delivers power savings with fanless models, Energy Efficient Ethernet, ability to disable LEDs and enable port low power mode. These switches provide consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.

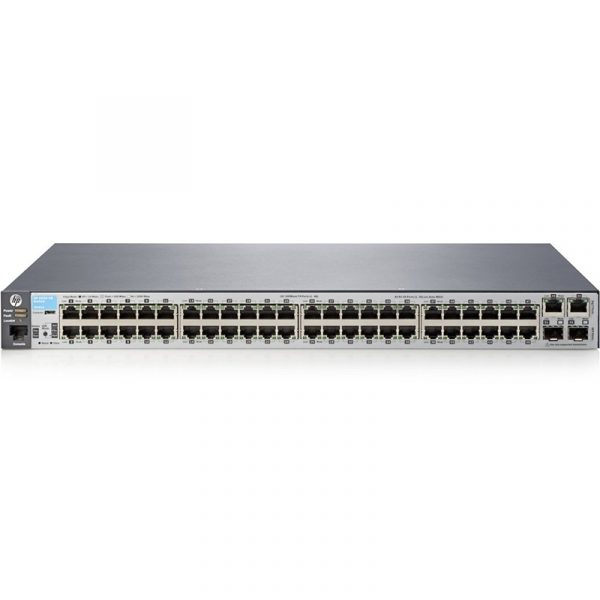

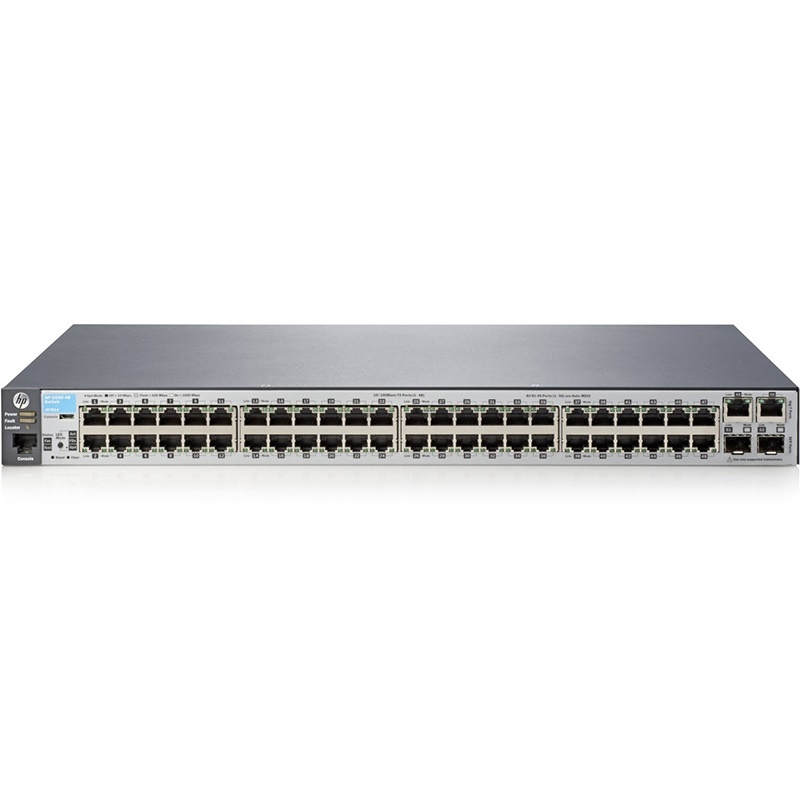

Aruba 2530 48 Switch
Specifications
J9781A
Device Type
Switch – 48 ports – Managed
Enclosure Type
Rack-mountable 1U
Subtype
Fast Ethernet
Ports
48 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000
Performance
Throughput: up to 13 Mpps ¦ Switching capacity: 17.6 Gbps
Capacity
MAC addresses: 16000
MAC Address Table Size
16000 entries
Jumbo Frame Support
9220 bytes
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Features
Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, LLDP support, Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Power
AC 120/230 V (50/60 Hz)
