Description
The HP JG936A 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium and large enterprise campus networks. Offering enterprise class QoS and security, HP Intelligent Resilient Framework (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10 GbE uplink ports, PoE+, ACLs and delivers energy savings with Energy Efficient Ethernet.

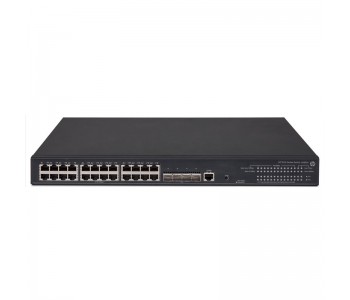

HPE 5130 24G PoE+ 4SFP+ EI Switch
Specifications
JG936A
Device Type
Switch – 24 ports – L3 – Managed – stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
370 W
Performance
Throughput: 96 Mpps ¦ Routing/switching capacity: 128 Gbps
Capacity
IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 256
MAC Address Table Size
16384 entries
Jumbo Frame Support
9216 bytes
Routing Protocol
Static IPv4 routing, static IPv6 routing
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI
Features
DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Weighted Round Robin (WRR) queuing, IPv6 support, half duplex mode, full duplex mode, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Per-VLAN Spanning Tree Plus (PVST+), Device Link Detection Protocol (DLDP) support, Rapid Ring Protection Protocol (RRPP) support, Endpoint Admission Defense (EAD), STP Root Guard, LLDP support, DHCP relay, Port Security, dynamic ARP protection, DHCP protection, Strict Priority Queuing (SPQ), port isolation, tagged VLAN, Generic Attribute Registration Protocol (GARP), Intelligent Resilient Framework Technology (IRF)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at
Power
AC 120/230 V
Dimensions (WxDxH)
44 cm x 30 cm x 4.37 cm
Weight
8 kg
