Description
The Aruba JL070A 2530 Switch Series provides security, reliability, and ease of use for enterprises, branch offices, and SMBs. This series of fully managed switches delivers full Layer 2 capabilities with enhanced access security, ACLs, traffic prioritization, sFlow, and IPv6 host support. Right size deployment is simple with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks. The 2530 delivers power savings with fanless models, Energy Efficient Ethernet, ability to disable LEDs and enable port low power mode. These switches provide consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.

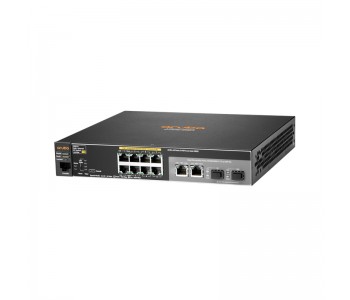

Aruba 2530 8 PoE+ Internal PS Switch
Specifications
JL070A
Device Type
Switch – 8 ports – Managed
Enclosure Type
Rack-mountable 1U
Subtype
Fast Ethernet
Ports
8 x 10/100 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP
Power Over Ethernet (PoE)
PoE+
Performance
Throughput (64-byte packet size): 4.1 Mpps ¦ Switching capacity: 5.6 Gbps
MAC Address Table Size
16000 entries
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Features
DHCP support, sFlow, Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), LLDP support, Class of Service (CoS)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
25.4 cm x 24.59 cm x 4.45 cm
Weight
2.11 kg
