Description
The Aruba JL320A 2930M Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with support of the latest SDN apps with future proof programmability for tomorrow’s applications. High performance modular stacking for up to 10 switches provides pay as you grow scalability and simplicity. The 2930M supports 10GbE and 40GbE uplinks, Dual Modular Power Supplies, up to 1440 Watts of PoE+, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, robust QoS, RIP, Access OSPF routing, Tunnel Node, PIM, VRRP and IPv6 with no software licensing required.

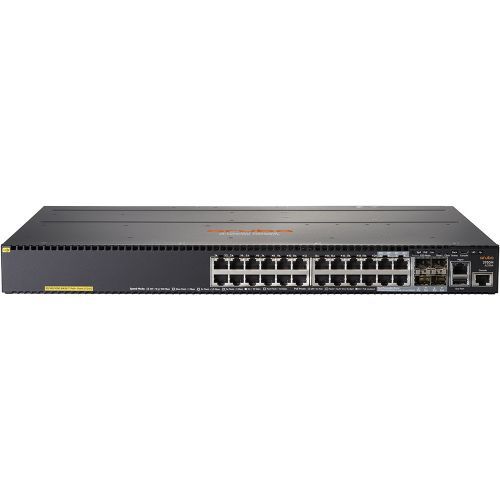

Aruba 2930M 24G PoE+ with 1-slot Switch
Specifications
JL320A
Product Differentiator (long)
Powerful and flexible high density 1U 24-port PoE+ access switch supporting up to 1440W of PoE. This model has 24x 10/100/1000 access ports including four that are combo dual purpose shared with SFP ports for fiber connectivity. This model does support PoE/PoE+ with a Power over Ethernet budget of up to 1440 Watts based on selected power supplies. Can take up to two power supplies power supplies ordered separately.
Power Consumption Description
2 power supplies are supported: JL086A PSU (each): 450W JL087A PSU (each): 840W
Heat Dissipation
150 BTU/hr 162 kJ/hr
Input Voltage
100 – 127 / 200 – 240 VAC, rated or 110-127 / 200-240VAC, Rated depending on power supply
External I/O Ports
(20) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot
Latency
1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs
Switching Capacity
128 Gbps
Throughput
up to 95.2 Mpps
Memory and Processor
Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5MB Ingress, 7.785 Egress 4 GB eMMC
Power Supply Name
JL086A Aruba X372 54VDC 680W 100-240VAC Power Supply, JL087A Aruba X372 54VDC 1050W 110-240VAC Power Supply
PoE Capability
Up to 720 Watts
Management Features
Aruba AirWave Network Management Aruba Central IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
