Description
What is your server bottleneck…storage, compute, expansion? The world’s best-selling server1 just got better. The HPE ProLiant P20182-B21 DL380 Gen10 Server delivers the latest in security, performance and expandability. While backed by a comprehensive warranty, makes it ideal for any server environment. Standardize on the industry’s most trusted compute platform. The HPE ProLiant DL380 Gen10 Server is securely designed to reduce costs and complexity, the Intel® Xeon® Processor Scalable Family with up to a 71% performance gain and 27% increase in cores, plus the HPE 2666 MT/s DDR4 SmartMemory supporting 3.0 TB and up to 11% faster than 2400 MT/s. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory, optimized on HPE ProLiant Servers, offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission critical applications, and deploy with confidence.

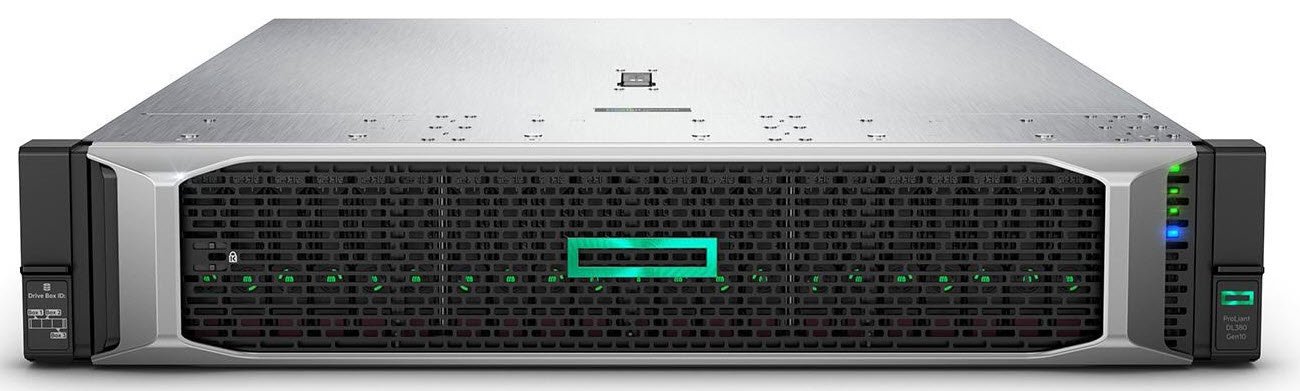

HPE ProLiant DL380 Gen10 3204 1.9GHz 6-core 1P 16GB-R S100i NC 8LFF 500W PS Server
Specifications
P20182-B21
Server
Product Form Factor
Rack-mountable – 2U
Built-in Devices
Battery
Server Scalability
2-way
Processor / Chipset
CPU
Intel Xeon Bronze 3204 / 1.9 GHz
Number of Cores
6-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621
Cache Memory
Installed Size
L3 cache – 8.25 MB
Cache Per Processor
8.25 MB
RAM
Installed Size
16 GB / 1.5 TB (max)
Technology
DDR4 SDRAM – Advanced ECC
Effective Memory Speed
2133 MHz
Rated Memory Speed
2933 MHz
Form Factor
DIMM 288-pin
Slots
24 (total) / 23 (empty)
Features
Registered, dual rank, slots 13 – 24 are available in two-processor configuration only, HPE SmartMemory, 6-channel memory architecture
Configuration Features
1 x 16 GB
RAM Supported
3 TB Load-Reduced – ECC ¦ 1.5 TB registered – ECC ¦ 192 GB Non-Volatile – ECC
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i
Channel Qty
14
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Video Memory
16 MB
Video Interfaces
VGA
Networking
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HPE 366FLR
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP
Remote Management Controller
Integrated Lights-Out 5
Features
PXE support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Expansion / Connectivity
Bays
8 (total) / 8 (free) x hot-swap 3.5″ LFF
Slots
1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 – half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 – half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
4 x LAN (Gigabit Ethernet) – RJ-45 ¦ 1 x HPE iLO – RJ-45 (1 rear) ¦ 1 x VGA (1 rear) ¦ 8 x SATA-600 / SAS 3.0 ¦ 1 x HPE iLO – Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal)
